FLEX FACE SIGNAGE

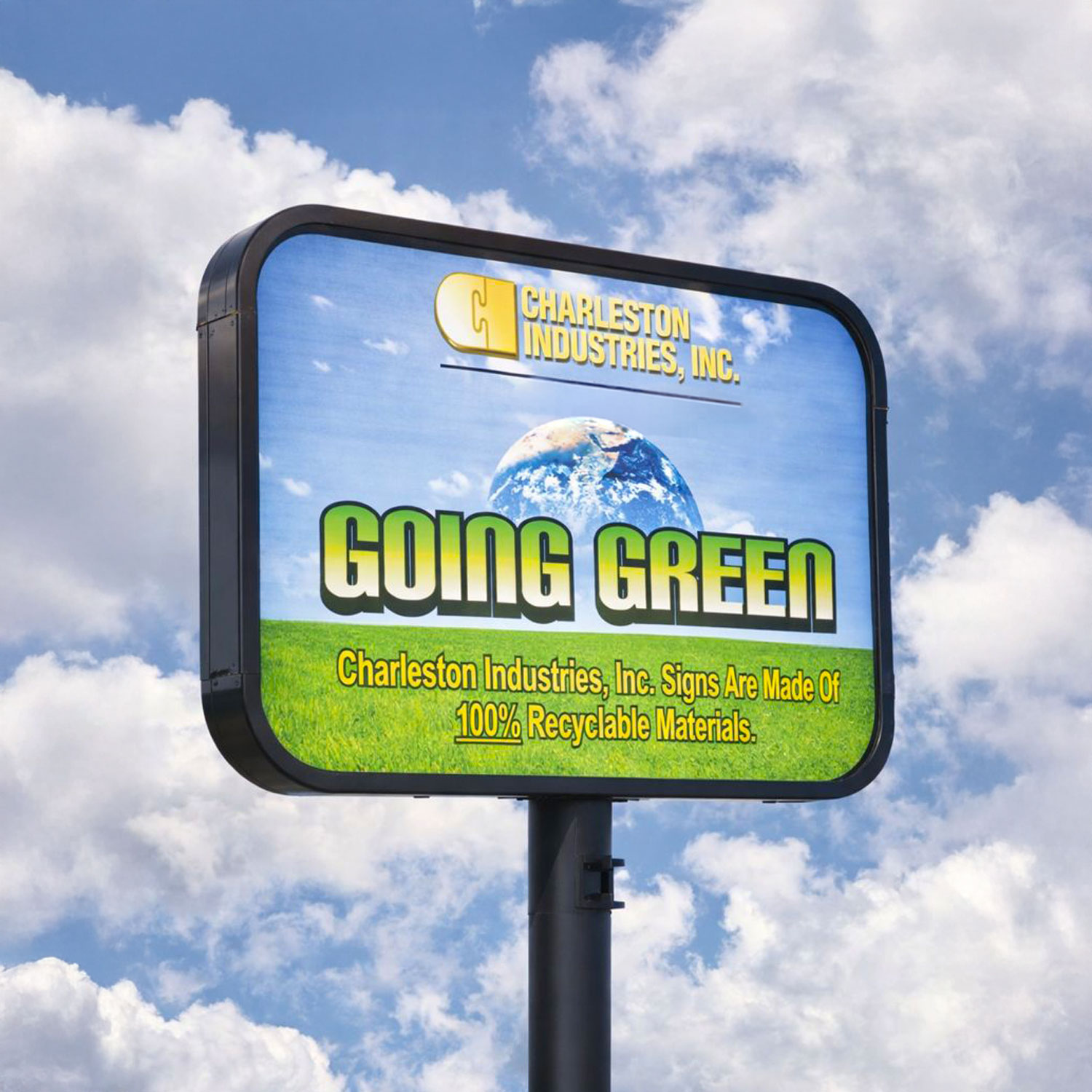

Charleston Sign Manufacturing offers a wide range of sign panels in both aluminum and high impact plastic substrates. In addition to these, they also provide flex face configurations, which are designed to create a more substantial, three-dimensional image.

These flex face signs are vacuum-formed to a depth of approximately 2″, giving them a striking appearance that will make your graphic message stand out. They are an affordable option for both illuminated and non-illuminated signs. You can choose from second surface vinyl, back sprayed embossed lettering, or first surface applications to customize your flex face sign.

These panels can be easily integrated into the Charleston Sign Systems® line of architectural signage extrusions used by Charleston Sign Manufacturing, ensuring a professional finish.

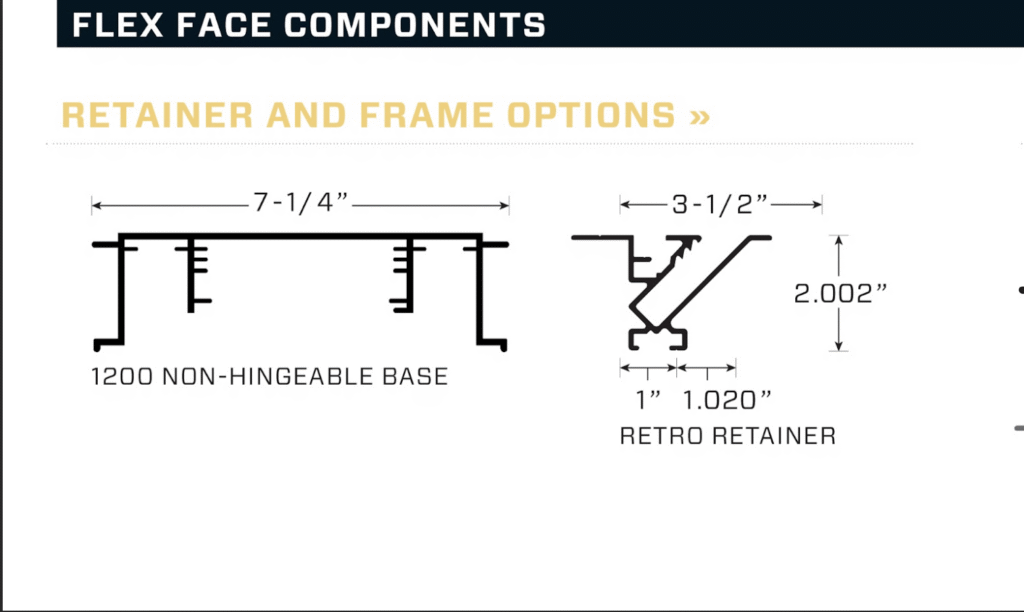

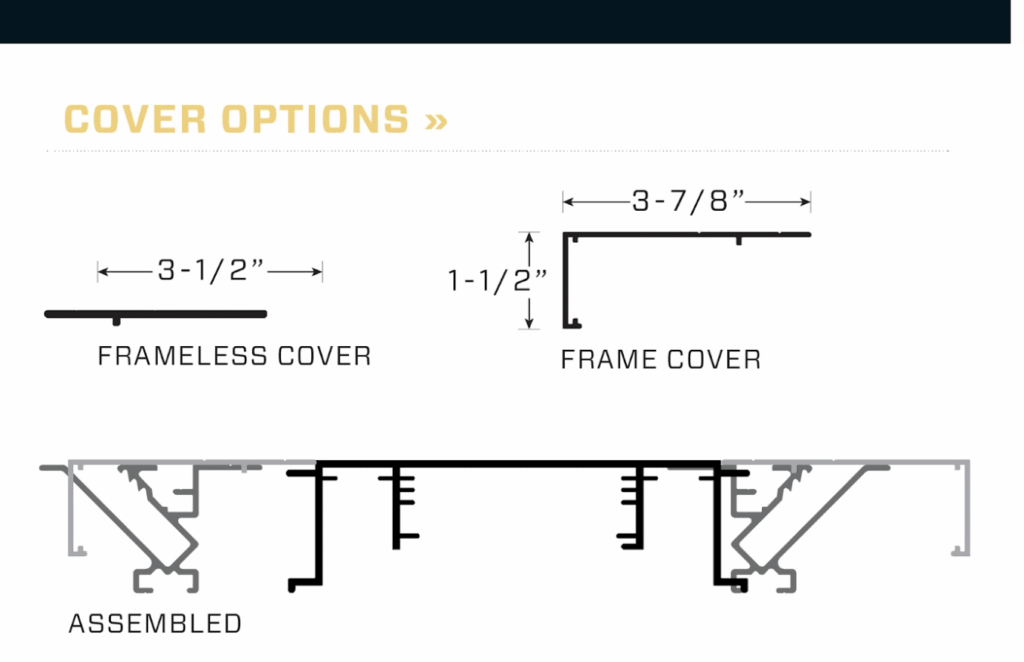

view components

[Flex Face]

Charleston Sign Manufacturing

General Specifications

System Features & Design

The beauty of Charleston Sign Manufacturing architectural signage systems are their inherent versatility. Utilizing modular components, the systems can be adapted to virtually any signage application ranging from monolithic designs to interior wall-mounted directories.

The Charleston Sign Manufacturing systems offer design integrity, aesthetic quality and remarkable economy.

Charleston Sign Manufacturing maintains a complete in-house paint facility. As a result, we are able to offer single source responsibility and a high level of quality control. In addition, our color matching capabilities are without equal. We take pride in providing full color matching services, usually in a week or less.

Our standard paint finish is an acrylic polyurethane, the most recognized coating for quality, brilliance and longevity in architectural signage systems. 6063 T5 aluminum extrusions are mechanically pre-treated, primed and electrostatically painted.

The finish is then baked on in an oven-accelerated air-dry system. The resulting hard, slick surface makes it impact resistant and able to withstand exposure to most solvents and chemicals as well as heavy traffic or abuse. In addition, the finish maintains its “just painted” look years after exposure to sun, salt, and corrosive industrial environments.

Beyond our standard acrylic paint finish, Charleston Sign Manufacturing can also provide anodized, Kynar 500® or other premium coatings as required. Please call us directly with your inquiries.

Charleston Sign Manufacturing uses signature extruded components manufactured by Charleston Sign Systems®. All posts and frames are manufactured from heavy duty 6063 T5 aluminum extrusions produced to Aluminum Association standards. Standard sign panels are supplied in .063 to .125 aluminum. Acrylic, fiber glass, Lumasite® or polycarbonate panels may also be specified.

There are a number of ways for a sign to effectively convey the proper graphic image. Charleston Sign Manufacturing employs state of the art graphics equipment and technology. This allows the architect/specifier the freedom to choose from a number of processes for producing a graphic image. Some of the processes used by Charleston Sign Manufacturing include:

Applied vinyl copy
Precision routed copy
Push-through copy
Frisketed copy
Back sprayed copy
Routed dimensional letters
Digital print

Our graphics capabilities allow us to offer a variety of options such as logo reproduction, corporate identity programs and sitewide uniformity of graphics.

The Series 750, 750 pylons and Series 1200 are designed for either Illuminated or non-illuminated applications. All units and ballasts are UL approved and are available in 120 or 277 volt configurations.

Standard Colors

01 Medium Bronze

02 Scarlet Red

03 Black Anodic

04 Capri Blue

05 Brushed Aluminium

06 Federal Green

07 Dark Bronze

08 Hospital Blue

09 Burgundy

10 Ivory

11 Deep Teal

12 Charcoal Grey

13 Rich Brown

14 Grey

15 High Gloss White

Architectural Signage Systems

At Charleston Sign Manufacturing, we specialize in wholesale architectural signage systems designed to integrate seamlessly into any built environment.
