Series 1200 Signs

MADE IN MISSISSIPPI

Charleston Sign Manufacturing

SERIES 1200 SIGNS

The Series 1200 is an architectural signage system from Charleston Sign Manufacturing that provides substantial dimensional presence. It features a full 12″ depth and is best suited for use as a primary sign. The Series 1200 comes in illuminated or non-illuminated options, as well as solar configurations.

The Series 1200 has an integral hinge system that allows for easy and quick maintenance of the cabinet and its internal components. It also has a recessed and skirted base that makes landscaping and maintenance easy. The Series 1200 accommodates aluminum, polycarbonate, acrylic, or pan-style faces.

All components of the Series 1200 are finished after fabrication to ensure a uniform appearance and eliminate bare edges.

FINIALS
Standard finial options available on 218, 225, 250, 325 and 750 series.

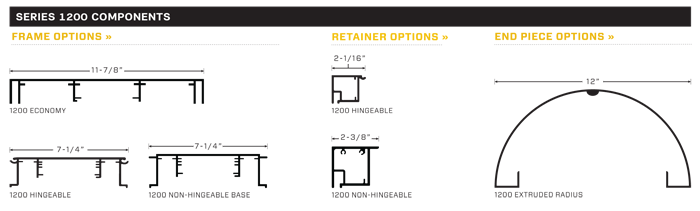

view components

[Series 1200]

Charleston Sign Manufacturing

General Specifications

System Features & Design

The beauty of Charleston Sign Manufacturing architectural signage systems are their inherent versatility. Utilizing modular components, the systems can be adapted to virtually any signage application ranging from monolithic designs to interior wall-mounted directories.

The Charleston Sign Manufacturing systems offer design integrity, aesthetic quality and remarkable economy.

Charleston Sign Manufacturing maintains a complete in-house paint facility. As a result, we are able to offer single source responsibility and a high level of quality control. In addition, our color matching capabilities are without equal. We take pride in providing full color matching services, usually in a week or less.

Our standard paint finish is an acrylic polyurethane, the most recognized coating for quality, brilliance and longevity in architectural signage systems. 6063 T5 aluminum extrusions are mechanically pre-treated, primed and electrostatically painted.

The finish is then baked on in an oven-accelerated air-dry system. The resulting hard, slick surface makes it impact resistant and able to withstand exposure to most solvents and chemicals as well as heavy traffic or abuse. In addition, the finish maintains its “just painted” look years after exposure to sun, salt, and corrosive industrial environments.

Beyond our standard acrylic paint finish, Charleston Sign Manufacturing can also provide anodized, Kynar 500® or other premium coatings as required. Please call us directly with your inquiries.

Charleston Sign Manufacturing uses signature extruded components manufactured by Charleston Sign Systems®. All posts and frames are manufactured from heavy duty 6063 T5 aluminum extrusions produced to Aluminum Association standards. Standard sign panels are supplied in .063 to .125 aluminum. Acrylic, fiber glass, Lumasite® or polycarbonate panels may also be specified.

There are a number of ways for a sign to effectively convey the proper graphic image. Charleston Sign Manufacturing employs state of the art graphics equipment and technology. This allows the architect/specifier the freedom to choose from a number of processes for producing a graphic image. Some of the processes used by Charleston Sign Manufacturing include:

Applied vinyl copy
Precision routed copy
Push-through copy
Frisketed copy
Back sprayed copy
Routed dimensional letters
Digital print

Our graphics capabilities allow us to offer a variety of options such as logo reproduction, corporate identity programs and sitewide uniformity of graphics.

The Series 750, 750 pylons and Series 1200 are designed for either Illuminated or non-illuminated applications. All units and ballasts are UL approved and are available in 120 or 277 volt configurations.

Standard Colors

01 Medium Bronze

02 Scarlet Red

03 Black Anodic

04 Capri Blue

05 Brushed Aluminium

06 Federal Green

07 Dark Bronze

08 Hospital Blue

09 Burgundy

10 Ivory

11 Deep Teal

12 Charcoal Grey

13 Rich Brown

14 Grey

15 High Gloss White

Architectural Signage Systems

At Charleston Sign Manufacturing, we specialize in wholesale architectural signage systems designed to integrate seamlessly into any built environment.
