ILLUMINATED SIGNS SERIES 750
MADE IN MISSISSIPPI
Charleston Sign Manufacturing
ILLUMINATED SIGNS SERIES 750

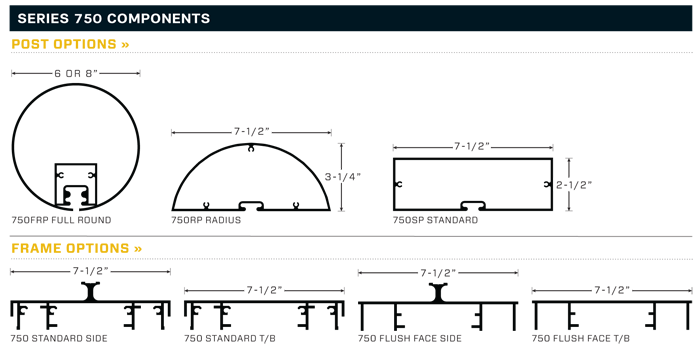

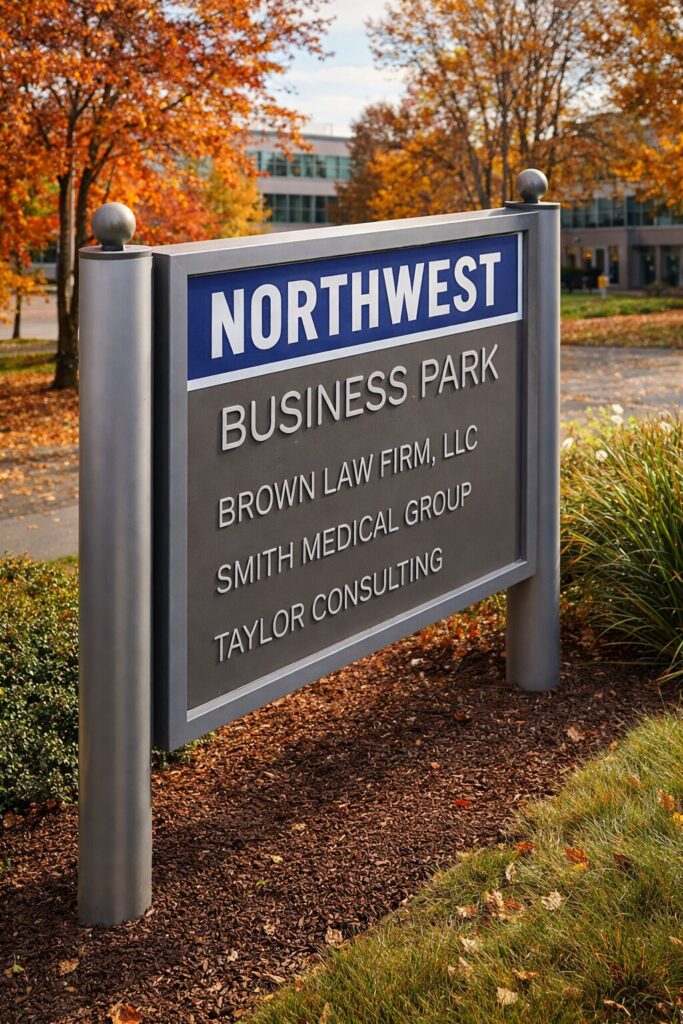

The 750 Series is a primary sign system that’s suitable for both illuminated or non-illuminated applications, with a 7 1/2″ wide post and frame that gives a substantial appearance to any sign design.
You can choose rectangular, radius, or full-round posts, cabinets with square or radius corners, and a skirt base option that gives it a monolithic appearance.
LEDs provide uniform illumination. Graphics and copy can be routed out, digitally printed, or applied by conventional methods, with panels available in aluminum, polycarbonate, acrylic, or pan-faced.
The 750 Pylon System features a 7 1/2″ wide Series 750 frame extrusion that provides a free-standing illuminated pylon sign, with the same graphics, finishes, and skirted base option as the 750 post and panel sign system. We provide custom mounting systems and designs to fit your architectural requirements.
FINIALS
Standard finial options available on 218, 225, 250, 325 and 750 series..
Charleston Sign Manufacturing
General Specifications
System Features & Design
The beauty of Charleston Sign Manufacturing architectural signage systems are their inherent versatility. Utilizing modular components, the systems can be adapted to virtually any signage application ranging from monolithic designs to interior wall-mounted directories.
The Charleston Sign Manufacturing systems offer design integrity, aesthetic quality and remarkable economy.
Charleston Sign Manufacturing maintains a complete in-house paint facility. As a result, we are able to offer single source responsibility and a high level of quality control. In addition, our color matching capabilities are without equal. We take pride in providing full color matching services, usually in a week or less.
Charleston Sign Manufacturing uses signature extruded components manufactured by Charleston Sign Systems®. All posts and frames are manufactured from heavy duty 6063 T5 aluminum extrusions produced to Aluminum Association standards. Standard sign panels are supplied in .063 to .125 aluminum. Acrylic, fiber glass, Lumasite® or polycarbonate panels may also be specified.
There are a number of ways for a sign to effectively convey the proper graphic image. Charleston Sign Manufacturing employs state of the art graphics equipment and technology. This allows the architect/specifier the freedom to choose from a number of processes for producing a graphic image. Some of the processes used by Charleston Sign Manufacturing include:
- Applied vinyl copy
- Precision routed copy
- Push-through copy
- Frisketed copy
- Back sprayed copy
- Routed dimensional letters
- Digital print
Standard Colors
01 Medium Bronze
02 Scarlet Red
03 Black Anodic
04 Capri Blue
05 Brushed Aluminium
06 Federal Green
07 Dark Bronze
08 Hospital Blue
09 Burgundy
10 Ivory
11 Deep Teal
12 Charcoal Grey
13 Rich Brown
14 Grey
15 High Gloss White
Architectural Signage Systems
At Charleston Sign Manufacturing, we specialize in wholesale architectural signage systems designed to integrate seamlessly into any built environment.
